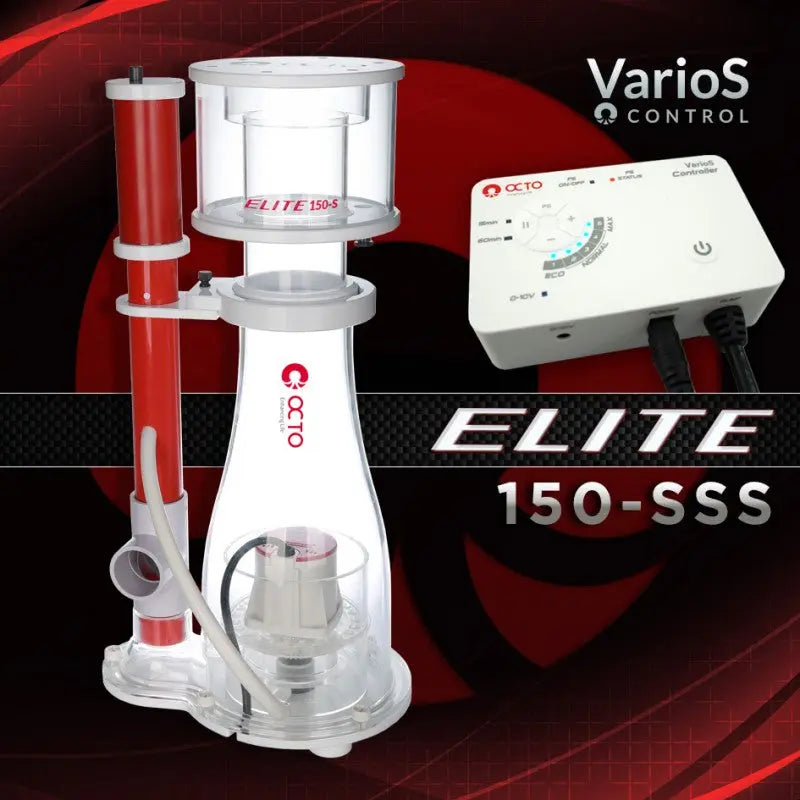

Reef Octopus Elite 150SSS Space Saver Super Cone Skimmer

ULTIMATE IN CONTROL & PERFORMANCE



The new and innovative Reef Octopus Elite 150-SSS in-sump protein skimmer supplies powerful filtration for aquariums up to 400 gallons where sumps space may be limited. The Reef Octopus Elite 150-SSS is constructed of high-quality cast acrylic and PVC that disassembles completely for cleaning. Its unique Super Cone "wine glass body" naturally stabilizes and concentrates the organic rich foam as it rises.



BIOLOAD HANDLING

(Excluding sump)



HEAVY 100G

MEDIUM 160G

LIGHT 210G



Safe and Efficient 24V Power

Turbulence Reducing Super Cone Body

Professional Open Volute -Compact Design

Solid Cast Acrylic & Machined PVC Construction

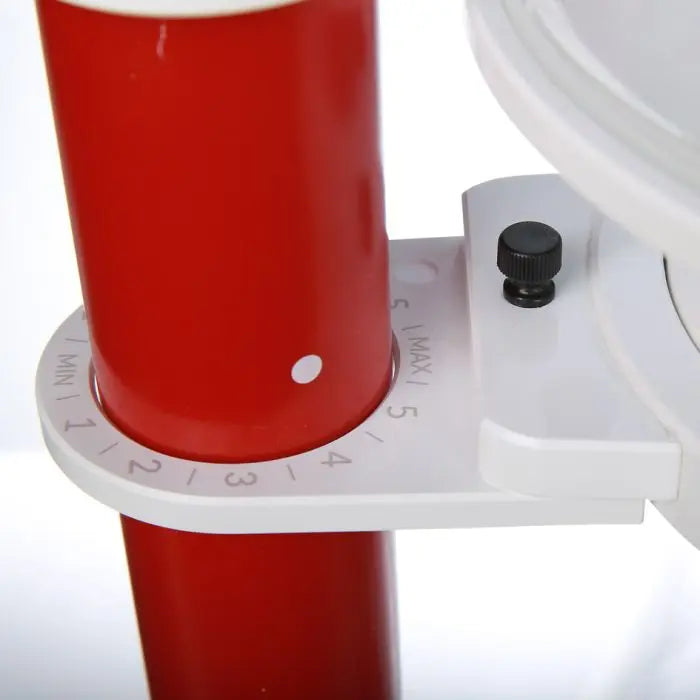

Vented Output Valve with Adjustment Dial

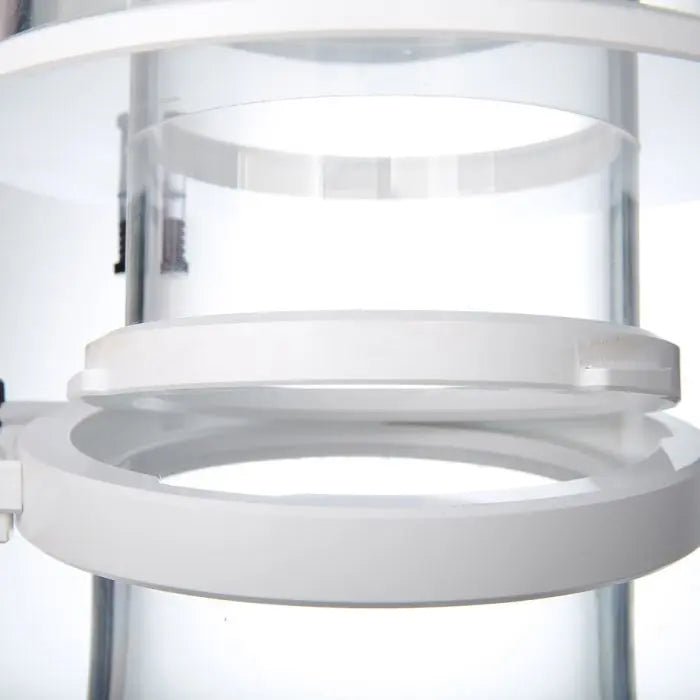

“Twist & Lift" Collection Cup

Disassembles for Easy Cleaning & Maintenance

Efficient, Quiet and Controllable VarioS-2S pump

5 Controllable Energy Saving Power Settings

Detachable Controller with Waterproof Union

Safety Float Switch

0-10v Input for 3rd Party Controller

Integrated Memory

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.

4in Waste Collector with Auto Shutoff & Delay Timer

4in Waste Collector with Auto Shutoff & Delay Timer







The Elite 150sss is equipped with a controllable VarioS-2Spinwheel pump with integrated memory controller. This skimmer features a unique “twist and lift" collection cup to make removal and cleaning a simple task, an easy to use vented wedge valve provides precise control, and an underwater outflow for quiet operation.



REFINED CONTROL

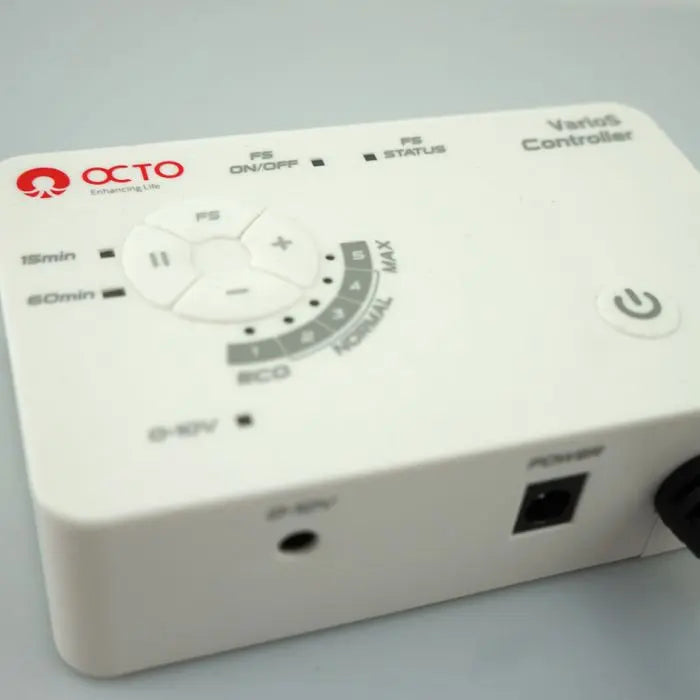

In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:



A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.

Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.

And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioSpumpfeatures a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.



The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.



ELITE 150-SSS TECHNICAL SPECS

Super Cone Body:6 to 3.5in

Footprint: 10.4in x 7.7in

Neck Size: 4.75in

Total Height: 21in

Output Size: 40mm/ 1.25in



Recommended Sump

Water Height: 6-8in

Pump Information

Reef Octopus VarioS-2S Controllable Pinwheel Pump

Power Consumption: 15-25watts

Voltage:DC 24V

Air Draw: 900 lph / 31.5 SCFH*

*Air and water results will vary depending on aquarium setup
